Product Summary
The 74AHC1G00GW is a kind of high-speed Si-gate CMOS device. It provides a 2-input NAND function. The 74AHC1G00GW has CMOS input switching levels and supply voltage range 2 V to 5.5 V.
Parametrics
74AHC1G00GW absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7.0 V; (2)VI, input voltage: -0.5 to +7.0 V; (3)IIK, input clamping current, VI < -0.5 V: -20 mA; (4)IOK, output clamping current, VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA; (5)IO, output current, -0.5 V < VO < VCC + 0.5 V: ±25 mA; (6)ICC, supply current: 75 mA; (7)IGND, ground current: -75 mA; (8)Tstg, storage temperature: -65 +150 ℃; (9)Ptot, total power dissipation, Tamb = -40 ℃ to +125 ℃: 250 mW.
Features
74AHC1G00GW features: (1)Symmetrical output impedance; (2)High noise immunity; (3)Low power dissipation; (4)Balanced propagatiodelays; (5)SOT353-1 and SOT753 package options; (6)ESD protection: HBM JESD22-A114E: exceeds 2000 V; MM JESD22-A115-A: exceeds 200 V; CDM JESD22-C101C: exceeds 1000 V; (7)Specified from -40 ℃ to +125℃.

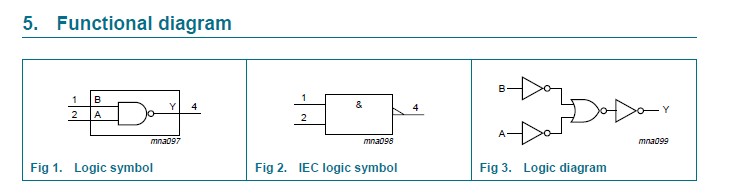

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74AHC1G00GW,125 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) SINGL 2-IN NAND GATE PICOGATE |
Data Sheet |
|
|
||||||||||||
 |
74AHC1G00GW,165 |
|
IC 2-IN NAND GATE SC88A-5 |
Data Sheet |
Negotiable |
|
||||||||||||
