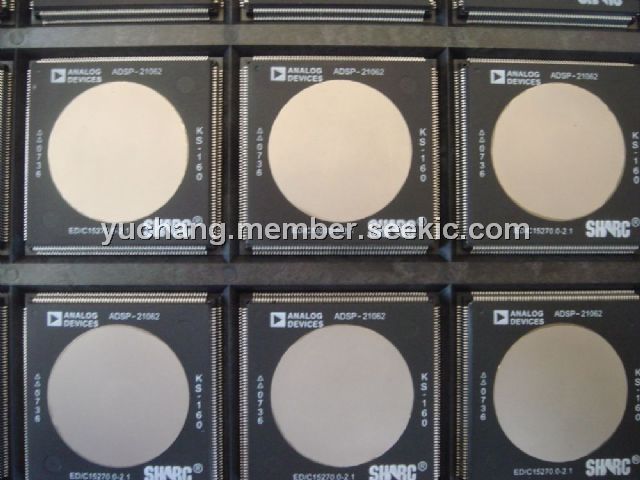

Product Summary

The ADSP-21062KS-160 SHARC—Super Harvard Architecture Computer—is a signal processing microcomputer that offers new capabilities and levels of performance. The ADSP-21062KS-160 SHARCs are 32-bit processors optimized for high performance DSP applications. The ADSP-21062KS-160 builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dual-ported on-chip SRAM and integrated I/O peripherals supporte by a dedicated I/O bus.

Parametrics

ADSP-21062KS-160 maximum ratings: (1)Supply Voltage (VDD): –0.3 V to +7.0 V; (2)Input Voltage: –0.5 V to VDD + 0.5 V; (3)Output Voltage Swing: –0.5 V to VDD + 0.5 V; (4)Load Capacitance: 200 pF; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature (5 seconds): 280℃; (7)Junction Temperature Under Bias: 130℃.

Features

ADSP-21062KS-160 features: (1)Computation units (ALU, multiplier and shifter) with a shared data register file; (2)Data address generators (DAG1, DAG2); (3)Program sequencer with instruction cache; (4)PM and DM buses capable of supporting four 32-bit data transfers between memory and the core at every core processor cycle; (5)Interval timer; (6)On-chip SRAM; (7)External port for interfacing to off-chip memory and peripherals; (8)Host port and multiprocessor Interface; (9)DMA controller.

Diagrams

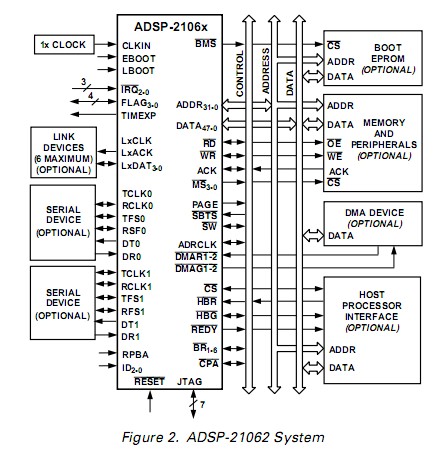

ADSP-21062KS-160 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADSP-21062KS-160
ADSP-21062KS-160


IC DSP CONTROLLER 2MBIT 240MQFP

Data Sheet

0-1: $108.59
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADSP-2100
ADSP-2100

Other


Data Sheet

Negotiable
ADSP-2101BG-100
ADSP-2101BG-100


IC DSP CONTROLLER 16BIT 68PGA

Data Sheet

0-1: $49.15
ADSP-2101BGZ-100
ADSP-2101BGZ-100

Analog Devices Inc

IC DSP 16BIT CTRL 25MHZ 68-PGA

Data Sheet

Negotiable
ADSP-2101BP-100
ADSP-2101BP-100


IC DSP CONTROLLER 16BIT 68PLCC

Data Sheet

0-6: $35.48
ADSP-2101BPZ-100
ADSP-2101BPZ-100


IC DSP SLG 16BIT 25MHZ 68-PLCC

Data Sheet

0-1: $31.64
1-10: $29.78
10-100: $26.62
100-250: $25.13
250-500: $24.82
ADSP-2101BS-100
ADSP-2101BS-100

Analog Devices Inc

IC DSP CONTROLLER 16BIT 80PQFP

Data Sheet

Negotiable
