Product Summary

The AT45DB321B-RI is a 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 34,603,008 bits of memory are organized as 8192 pages of 528 bytes each. In addition to the main memory, the AT45DB321B-RI also contains two SRAM data buffers of 528 bytes each. The buffers allow receiving of data while a page in the main memory is being reprogrammed, as well as reading or writing a continuous data stream. EEPROM emulation (bit or byte alterability) is easily handled with a self-contained three step Read-Modify-Write operation. Unlike conventional Flash memories that are accessed randomly with multiple address lines and a parallel interface, the AT45DB321B-RI uses a SPI serial interface to sequentially access its data. DataFlash supports SPI mode 0 and mode 3.

Parametrics

AT45DB321B-RI absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB321B-RI features: (1)Single 2.7V to 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)20 MHz Max Clock Frequency; (4)Page Program Operation; (5)Supports Page and Block Erase Operations; (6)Two 528-byte SRAM Data Buffers Allows Receiving of Data while Reprogramming of Nonvolatile Memory; (7)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (8)Low Power Dissipation: 4 mA Active Read Current Typical; 2 μA CMOS Standby Current Typical; (9)Hardware Data Protection Feature; (10)100% Compatible to AT45DB321; (11)5.0V-tolerant Inputs: SI, SCK, CS, RESET and WP Pins; (12)Commercial and Industrial Temperature Ranges.

Diagrams

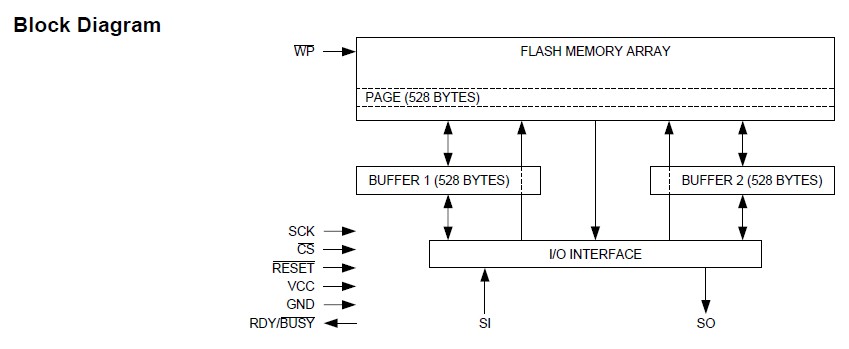

AT45DB321B-RI circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT45DB321B-RI
AT45DB321B-RI


IC FLASH 32MBIT 20MHZ 28SOIC

Data Sheet

Negotiable
