Product Summary

The BTS4140N L6327 is a smart high-side power switch one channel: 1 x 1Ω. The BTS4140N L6327 is an N channel vertical power MOSFET with charge pump and current controlled input, monolithically integrated in Smart SIPMOS technology. The device provides embedded protective functions. The applications of the BTS4140N L6327 are All types of resistive, inductive and capacitive loads, Current controlled power switch for 12V, 24V and 42V DC applications, Driver for electromechanical relays, Signal amplifier.

Parametrics

BTS4140N L6327 absolute maximum ratings: (1)Supply voltage Vbb: 60 V; (2)Load current IL: self limited A; (3)Maximum current through the input pin ( DC ) IIN: ±15 mA; (4)Operating temperature Tj: -40 to +150℃; (5)Storage temperature Tstg: -55 to +150℃; (6)Power dissipation TA = 25℃ Ptot: 1.7 W.

Features

BTS4140N L6327 features: (1)Current controlled input; (2)Short circuit protection; (3)Current limitation; (4)Overload protection; (5)Overvoltage protection (including load dump); (6)Switching inductive loads; (7)Clamp of negative voltage at output with inductive loads; (8)Thermal shutdown with restart; (9)ESD - Protection; (10)Loss of GND and loss of Vbb protection; (11)Very low standby current.

Diagrams

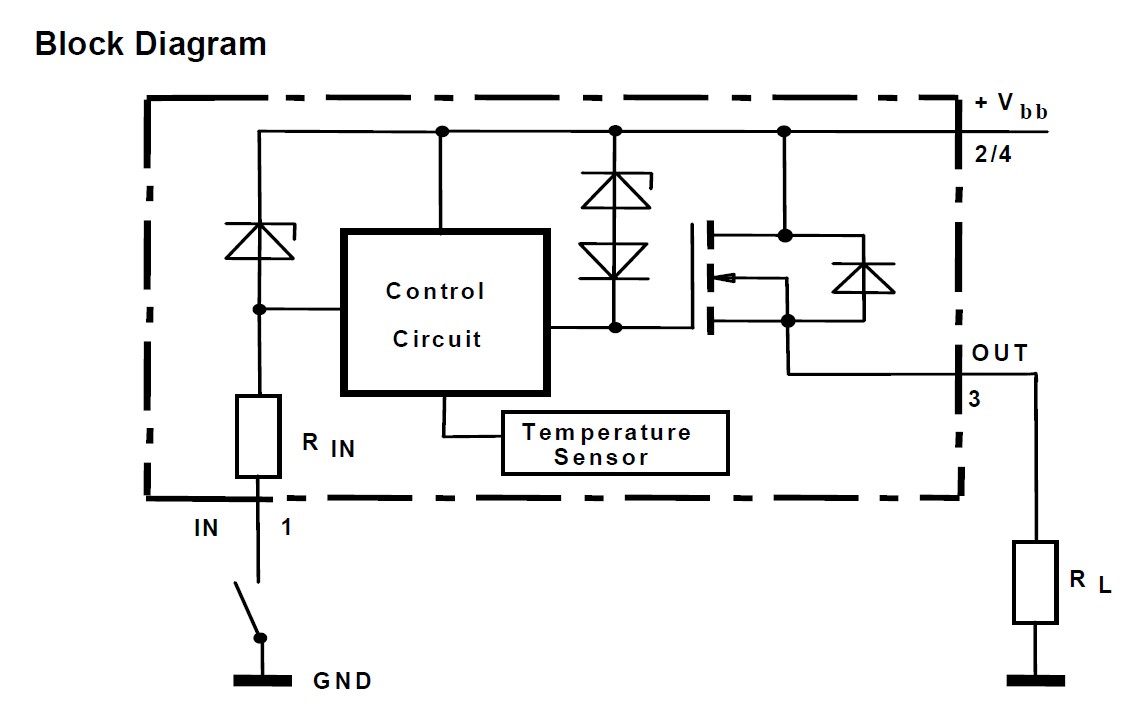

BTS4140N L6327 block diagram
