Product Summary

The TMS320F2812PGFA is a digital signal processor. The TMS320F2812PGFA is a member of the TMS320C28x DSP generation, is highly integrated, high-performance solution for demanding control applications.

Parametrics

TMS320F2812PGFA absolute maximum ratings: (1)Supply voltage range, VDD, PLLVCCA, VDDO, and VCCA (see Note 1): – 0.3 V to 4.6 V; (2)Supply voltage range, CVDD: – 0.5 V to 2 V; (3)VCCP range: – 0.3 V to 3.6 V; (4)Input voltage range, VIN : – 0.3 V to 4.6 V; (5)Output voltage range, VO: – 0.3 V to 4.6 V; (6)Output voltage range,VO: – 0.3 V to 4.6 V; (7)Input clamp current, IIK (VIN < 0 or VIN > VCC): ± 20 mA; (8)Output clamp current, IOK (VO < 0 or VO > VCC): ± 20 mA; (9)Operating free-air temperature ranges, TA: A version: – 40°C to 85°C; (10)S version: – 40°C to 125°C; (11)Junction temperature range, TJ: – 40°C to 150°C; (12)Storage temperature range, Tstg: – 65°C to 150°C.

Features

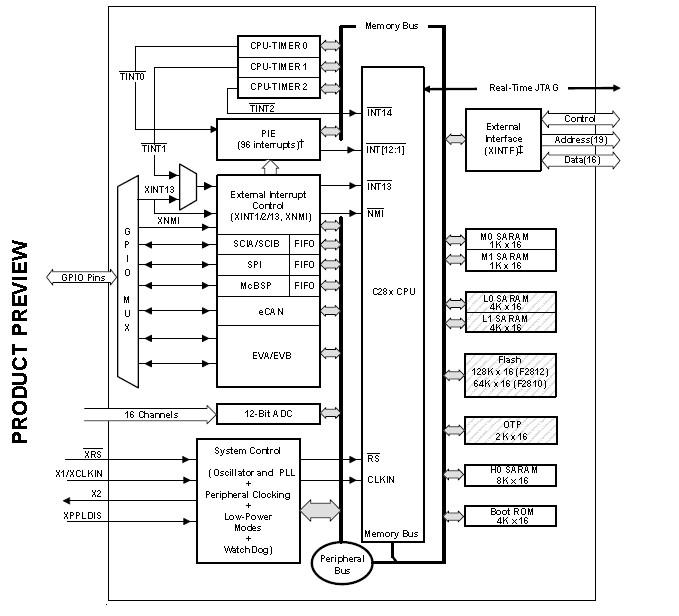

TMS320F2812PGFA features: (1)High-Performance Static CMOS Technology; (2)High-Performance CPU (C28x); (3)On-Chip Memory; (4)Boot ROM (4K x 16); (5)External Interface (F2812); (6)Clock and System Control; (7)Three External Interrupts; (8)Peripheral Interrupt Expansion (PIE) Block That Supports 45 Peripheral Interrupts; (9)128-Bit Security Key/Lock; (10)Motor Control Peripherals; (11)Three 32-Bit CPU-Timers; (12)Serial Port Peripherals; (13)12-Bit ADC, 16 Channels; (14)Up to 56 Individually Programmable,; (15)Multiplexed General-Purpose Input/Output (GPIO) Pins; (16)Up to 56 Individually Programmable,; (17)Low-Power Modes and Power Savings.
