Product Summary

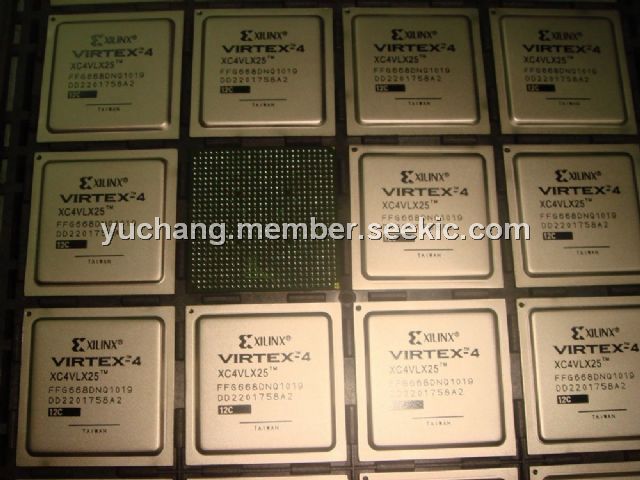

The XC4VLX25-12FFG668C is a Field Programmable Gate Array. The innovative Advanced Silicon Modular Block or ASMBL column-based architecture is unique in the programmable logic industry. The XC4VLX25-12FFG668C core includes the PowerPC processors (with a new APU interface), Tri-Mode Ethernet MACs, 622 Mb/s to 11.1 Gb/s serial transceivers, voltage/temperature system monitor blocks, dedicated DSP slices, high-speed clock management circuitry, and source-synchronous interface blocks. The XC4VLX25-12FFG668C is produced on a state-of-the-art 90-nm copper process, using 300 mm (12 inch) wafer technology. Combining a wide variety of flexible features, the XC4VLX25-12FFG668C enhances programmable logic design capabilities and is a powerful alternative to ASIC technology.

Parametrics

XC4VLX25-12FFG668C absolute maximum ratings: (1)Number of I/O Pins: 448; (2)Number of Pins: 668; (3)RAM Memory Size: 165887 B; (4)Frequency: 400 MHz; (5)Supply Voltage (DC): 1.20 V; (6)Lead-Free Status: Lead Free; (7)Mounting Type: Surface Mount; (8)Packaging: Tray; (9)RoHS Compliant.

Features

XC4VLX25-12FFG668C features: (1)Flexible Logic Resources; (2)Built-in System Monitor (voltage/temp. measurement); (3)10-bit, 200kSPS A/D Converter (ADC); (4)Secure Chip AES Bitstream Encryption; (5)90-nm copper CMOS process; (6)1.2V core voltage; (7)Flip-Chip Packaging; (8)RocketIO 622 Mb/s to 11.1 Gb/s Multi-Gigabit Transceivers (MGT) (FX only); (9)IBM PowerPC RISC Processor Core (FX only): PowerPC 405 (PPC405) Core; Auxiliary Processor Unit Interface (User Coprocessor); (10)Multiple Tri-Mode Ethernet MACs (FX only).

Diagrams

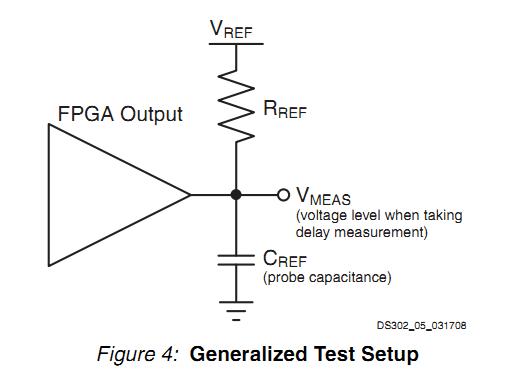

XC4VLX25-12FFG668C diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC4VLX25-12FFG668C
XC4VLX25-12FFG668C


IC FPGA VIRTEX-4 LX 25K 668FCBGA

Data Sheet

0-2: $295.26
