Product Summary

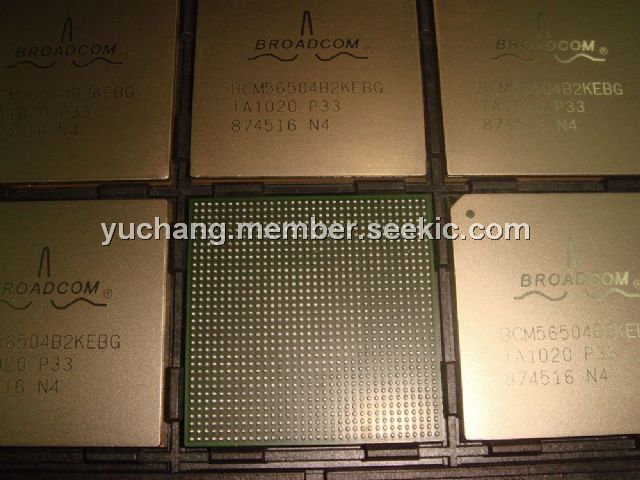

The BCM56504B2KEBG is a single-chip switch with 24-GbE ports and four 10-GbE/HiGig+ uplink ports. It incorporates 24-GbE ports that can operate 10/100/1000 Mbps. The uplink ports can operate in two modes: 10-GbE switching mode and HiGig+ uplink mode. The BCM56504B2KEBG integrates sophisticated advanced L3 switching features for cost-effective highly manageable enterprise networks. With high-integration and high-port density, the BCM56504B2KEBG is ideal for Enterprise applications in standalone, stackable, and chassis configurations applicable in the edge, aggregation, and core areas of the Enterprise.
Parametrics
BCM56504B2KEBG general specifications: (1)Number of Digits: 20; (2)Number of Segments:160; (3)Package / Case:QFP; (4)Maximum Clock Frequency:400KHz; (5)Operating Supply Voltage:5.00V; (6)Maximum Supply Current:0.12mA; (7)Maximum Power Dissipation:400mW; (8)Maximum Operating Temperature:+80℃; (9)Minimum Operating Temperature:-40℃.
Features
BCM56504B2KEBG features: (1)24 10/100/1000 Mbps Ethernet ports supporting both copper and fiber connections; (2)Fifth generation of StrataSwitch and StrataXGS product line; (3)Four 12-Gbps or 10-Gbps HiGig+ port uplink interfaces; (4)Four 10-GbE switching ports, CX4 support; (5)Line-rate switching for all packet sizes and conditions; (6)On-chip data packet memory and table memory; (7)IPv6 routing and tunneling; (8)Advanced Fast Filter Processor (FFP) ContentAware classification; (9)Advanced security features in hardware; (10)Port-trunking and mirroring supported across stack; (11)Advanced packet flow control: Head-of-line blocking prevention, Back pressure support; (12)Eight QoS queues per port with hierarchical minimum/maximum shaping per Classes of Service (CoS) per queue per port; (13)Standard compliant 802.1ad provider bridging.
Diagrams
 |
