Product Summary

The BTS50085-1TMA is a smart high side high current power switch.

Parametrics

BTS50085-1TMA absolute maximum ratings: (1)Overvoltage protection, Vbb(AZ): 70V; (2)Output clamp, VON(CL): 62V; (3)Operating voltage, Vbb(on): 5.0 to 58V; (4)On-state resistance, RON: 9mΩ; (5)Load current (ISO), IL(ISO): 44 A; (6)Short circuit current limitation, IL(SC): 90A; (7)Current sense ratio, IL : IIS: 13 000.

Features

BTS50085-1TMA features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Over temperature protection; (5)Over voltage protection (including load dump); (6)Clamp of negative voltage at output; (7)Fast deenergizing of inductive loads; (8)Low ohmic inverse current operation; (9)Diagnostic feedback with load current sense; (10)Open load detection via current sense; (11)Loss of Vbb protection2); (12)Electrostatic discharge (ESD) protection; (13)Green product (RoHS compliant); (14)AEC qualified.

Diagrams

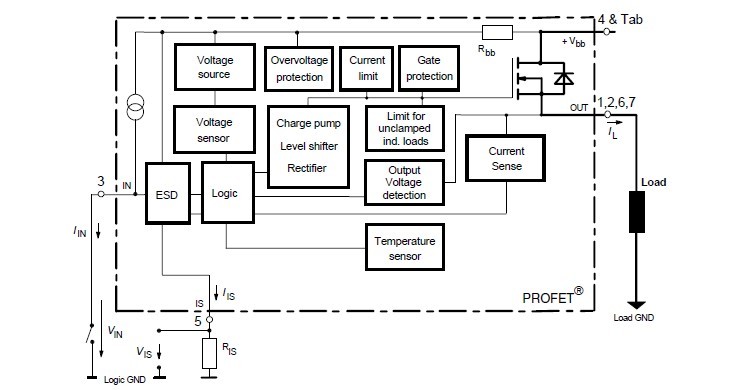

BTS50085-1TMA function diagram
