Product Summary

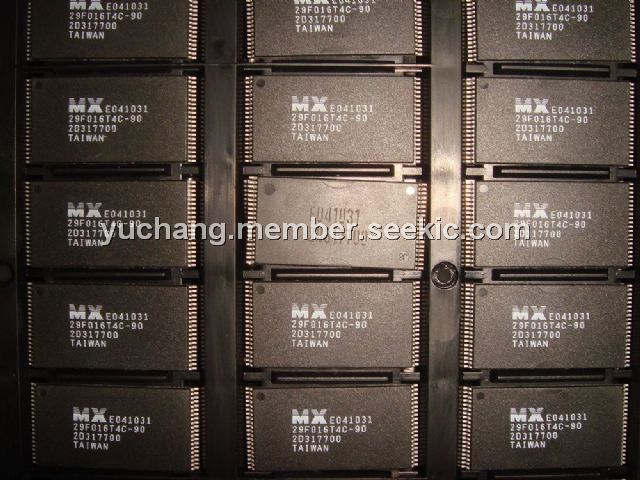

The MX29F016T4C-90 is a 16-mega bit Flash memory organized as 2M bytes of 8 bits. MXIC Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29F016 is packaged in 40-pin TSOP or 44-pin SOP, 48-pin TSOP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers. The standard MX29F016T4C-90 offers access time as fast as 90ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the MX29F016T4C-90 has separate chip enable (CE) and output enable (OE ) controls.
Parametrics
MX29F016T4C-90 absolute maximum ratings: (1)Ambient Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -65℃ to 125℃; (3)Applied Input Voltage: -0.5V to 7.0V; (4)Applied Output Voltage: -0.5V to 7.0V; (5)VCC to Ground Potential: -0.5V to 7.0V; (6)A9 & OE: -0.5V to 13.5V.
Features
MX29F016T4C-90 features: (1)Single power supply 5V operation for read, erase and program; (2)Fast access time: 90/120ns; (3)Low power consumption: 30mA maximum active current; 0.2uA typical standby current; (4)Command register architecture; (5)Auto Erase (chip & sector) and Auto Program; (6)Erase suspend/Erase Resume; (7)Status Reply; (8)Group Sector protect/unprotect for 5V/12V system.; (9)Group Sector protection; (10)100,000 minimum erase/program cycles; (11)Latch-up protected to 100mA from -1V to VCC+1V; (12)Low VCC write inhibit is equal to or less than 3.2V; (13)Package type: 40-pin TSOP, 44-pin SOP, 48-pin TSOP; (14)Compatibility with JEDEC standard.

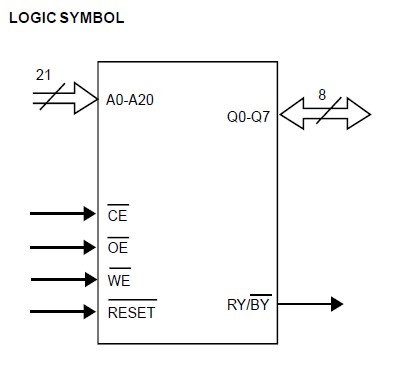

Diagrams
 |
